The Number One Wheelbarrow Manufacturer in Indonesia



ARTCO WHEELBARROW

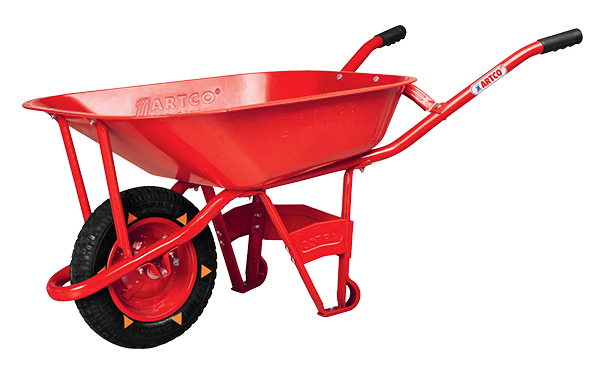

ARTCO MERAH
  • 4.0 cubic feet capacity
  • 13" x 3" (3.25/3.00-8) pneumatic yyre & welded wheels
  • One piece seamless tray. Double folded edge for extra strength and safety
  • Heavy gauge tubular steel handles
  • One piece handle variation for handle and tray protection
  • Channel Steel Legs and slotted cross-brace
  • Heavy duty and extra strength wheel shaft
  • Finished with powder coating system

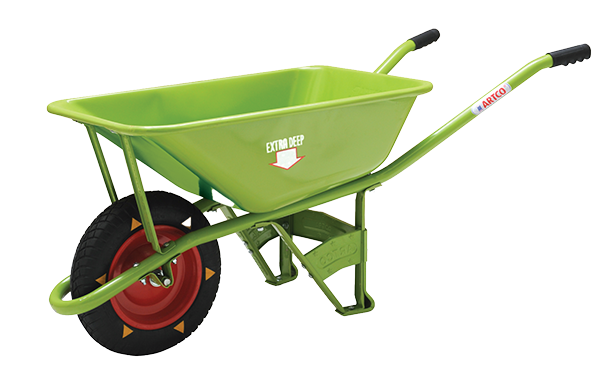

ARTCO BANANA GREEN
  • 3.0 cubic feet capacity
  • 13" x 3" (3.25/3.00-8) pneumatic tyre & welded wheels
  • One piece seamless tray. Folded tubular steel edge for extra strength and safety
  • Knock down heavy gauge tubular steel handles
  • Channel Steel Legs and slotted cross-brace
  • Heavy duty and extra strength wheel shaft
  • Finished with powder coating system
  • Finished with powder coating system
ARTCO JUMBO
  • 6.0 cubic feet capacity
  • 16" x 4" (4.00-8) pneumatic yyre & welded wheels
  • One piece seamless tray. Folded tubular steel edge for extra strength and safety
  • Heavy gauge tubular steel handles
  • One piece handle variation for handle and tray protection
  • Channel Steel Legs and slotted cross-brace
  • Heavy duty and extra strength wheel shaft
  • Finished with powder coating system


PARTS

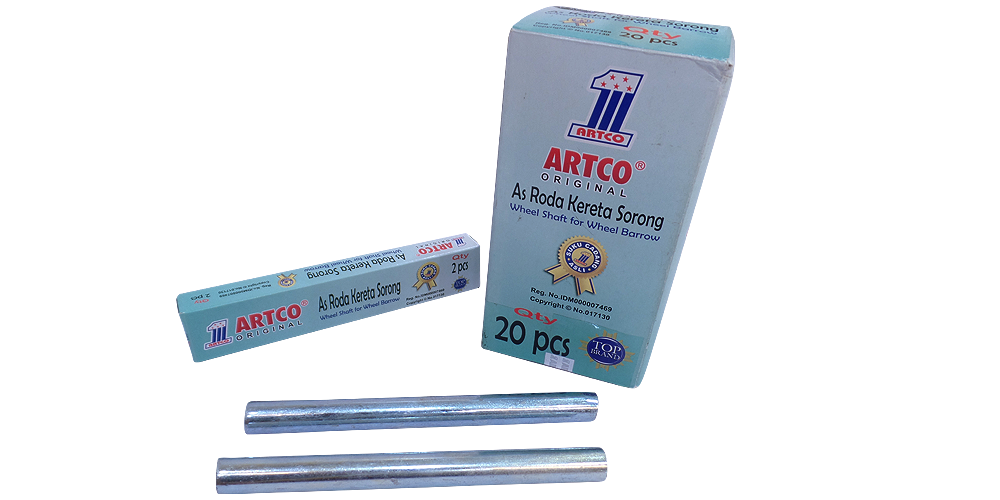

WHEEL SHAFT

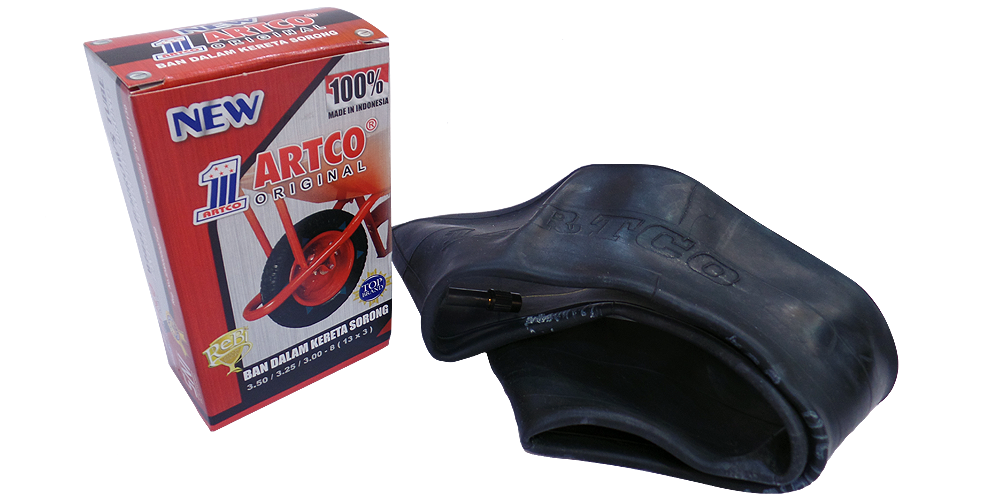

WHEEL BARROW'S TUBE

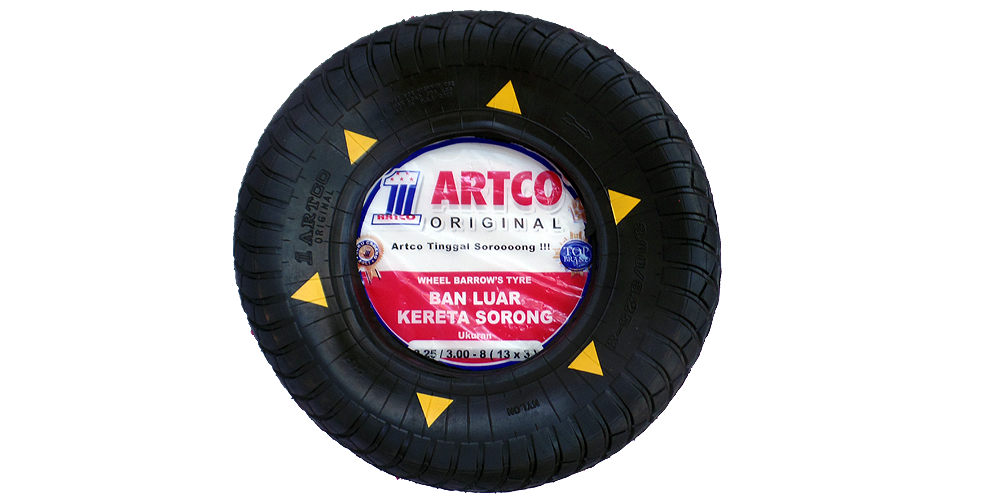

WHEEL BARROW'S TYRE

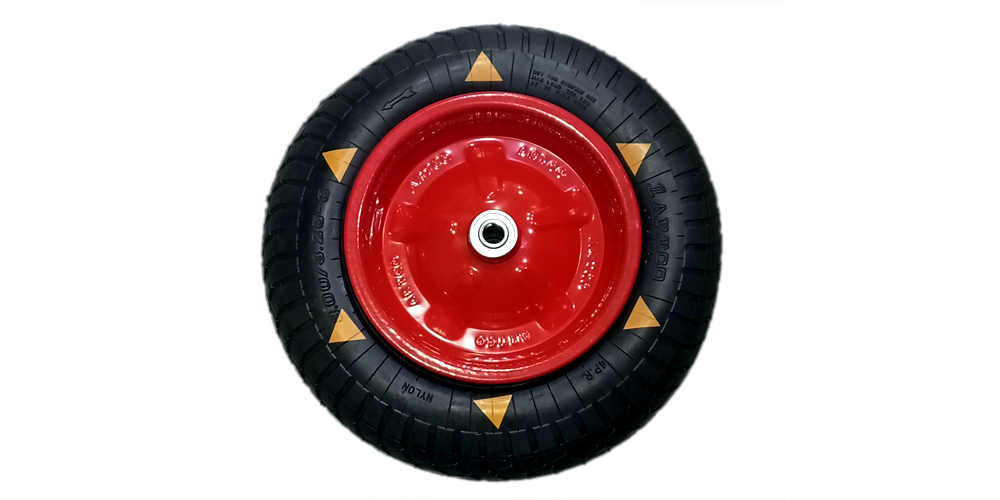

PNEUMATIC WHEEL

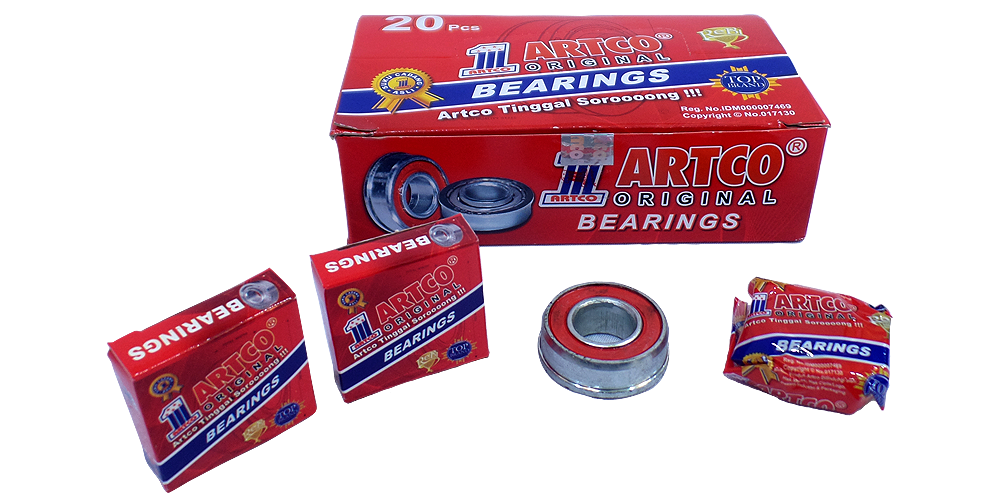

BEARING
BEARINGS

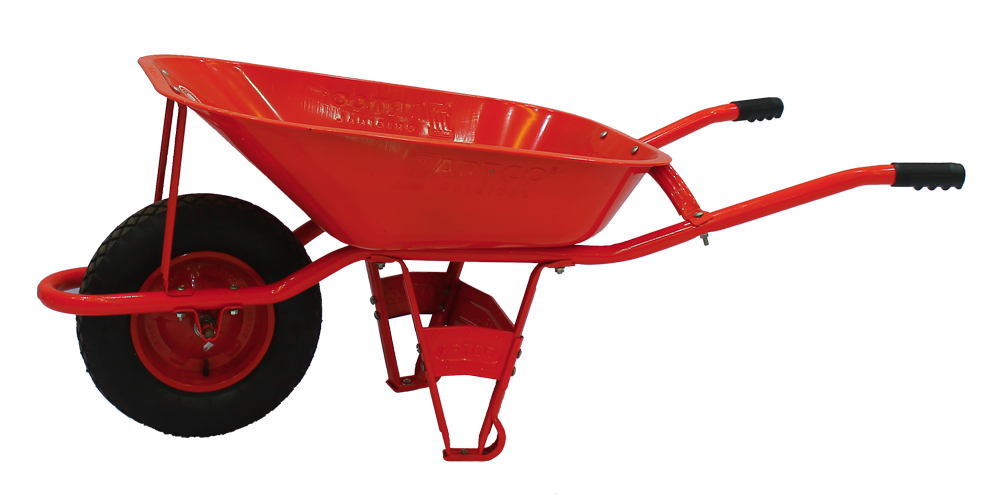

CUSTOM MADE WHEELBARROWS

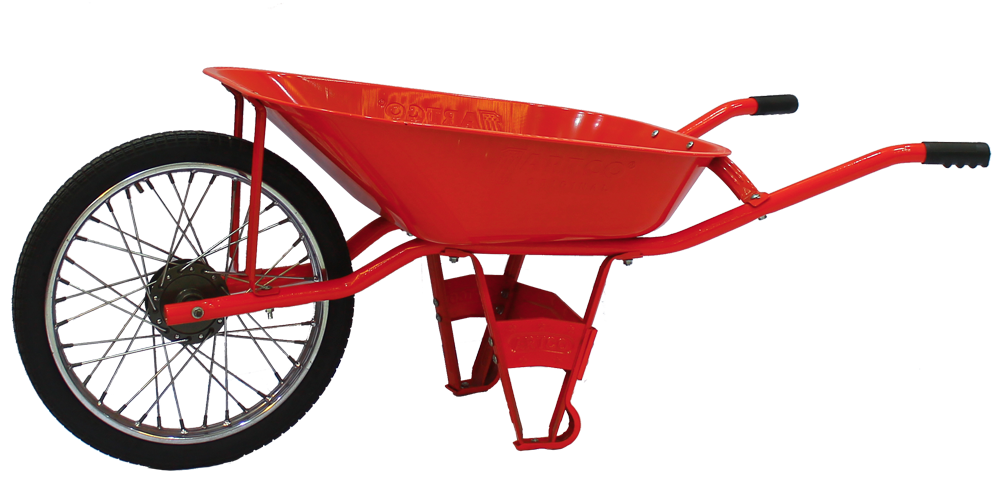

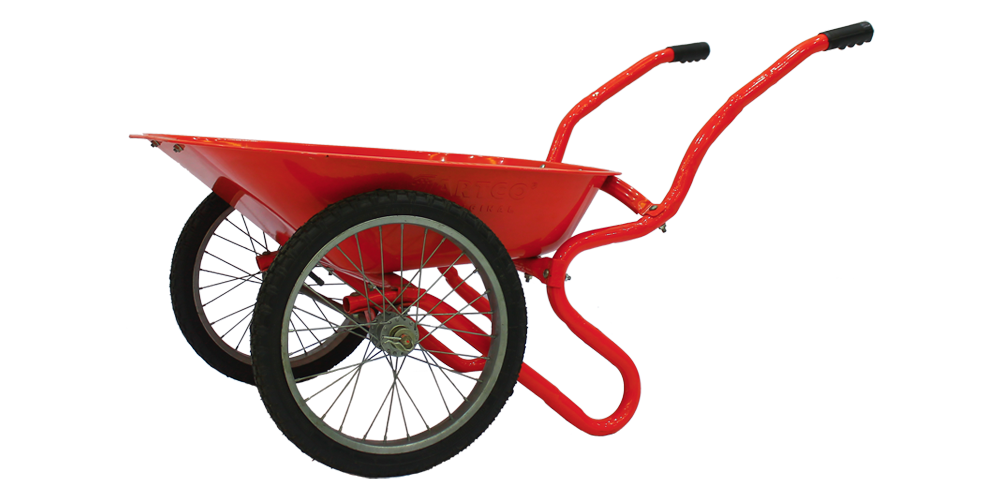

A PAIR MOTORCYCLE'S WHEEL
DIFFERENT SUPPORT
MOTORCYCLE'S WHEEL

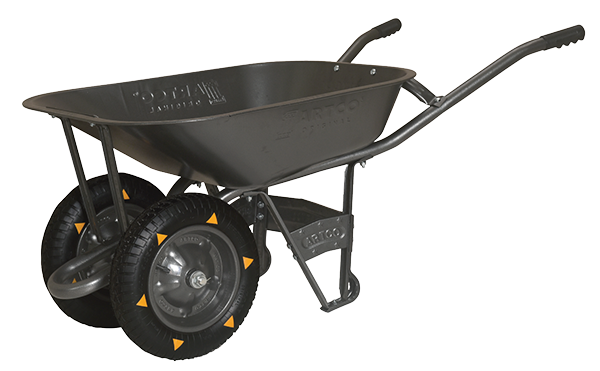

WITH 2 WHEELS
XL WHEEL

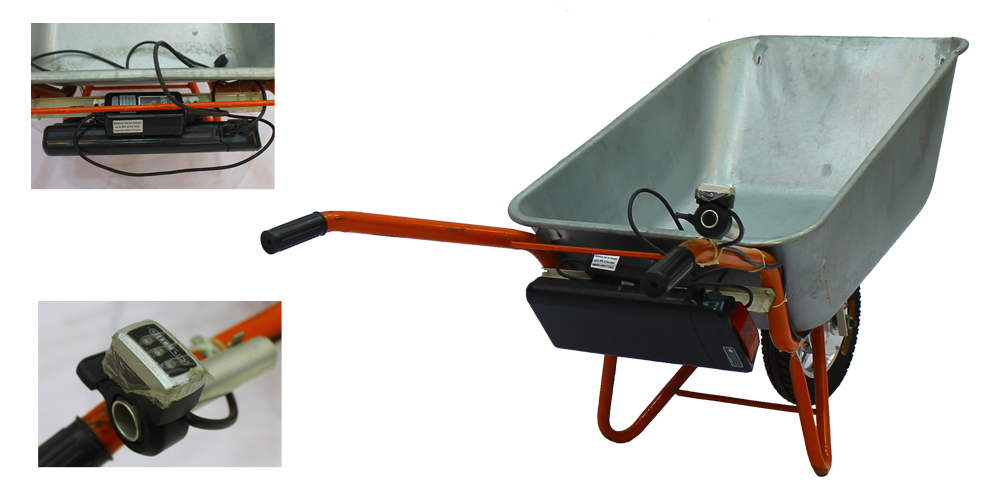

WITH ENGINE
xxxxxxxxx

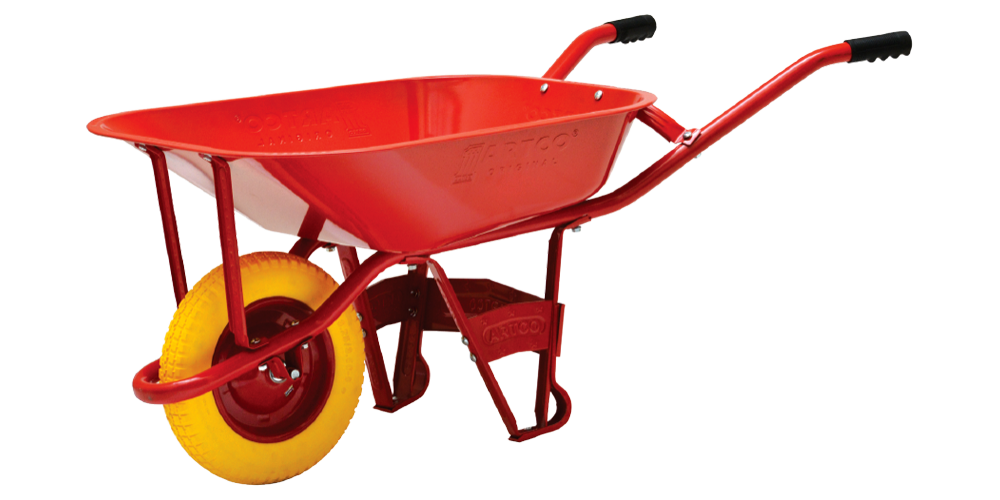

FOAM WHEEL
xxxxxxxxx


HAND TRUCK

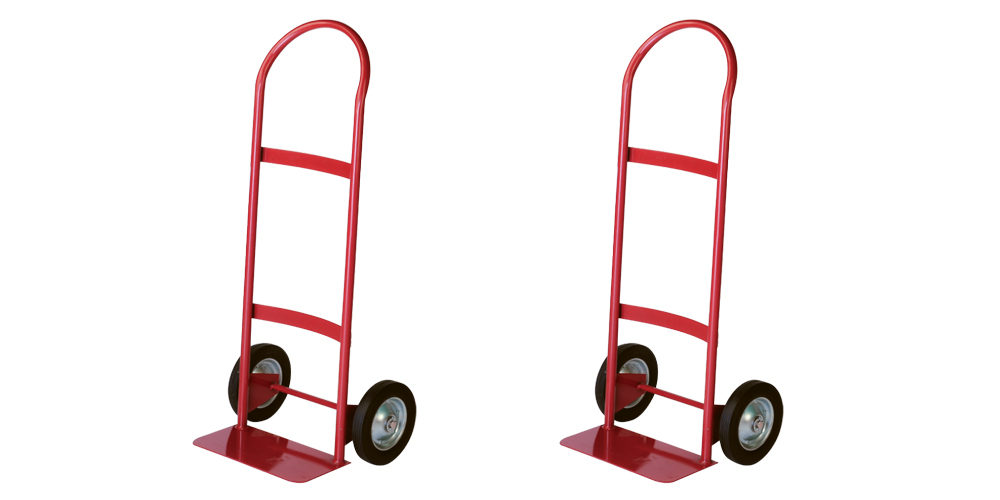

HT 2003


Capacity100Kg
Overall Size1062mm x 435mm x 366mm
(L x W1 x H)
FrameSteel Tube Ø 1.0" x 1.2mm (Thickness)
Cross Brace2-Curve Steel Strips
Thickness 3.0mm Width 40mm
Toe PlateThickness 3.0mm
Height 180mm (W2) Width 360mm
Wheel8" x 1.75" Solid Rubber Wheel with Nylon Bushing
Wheel Bracket3.0mm Welded Steel
Welded AxleØ 12mm x 460mm
FinishingPowder Coating System
Weight8.5 Kg

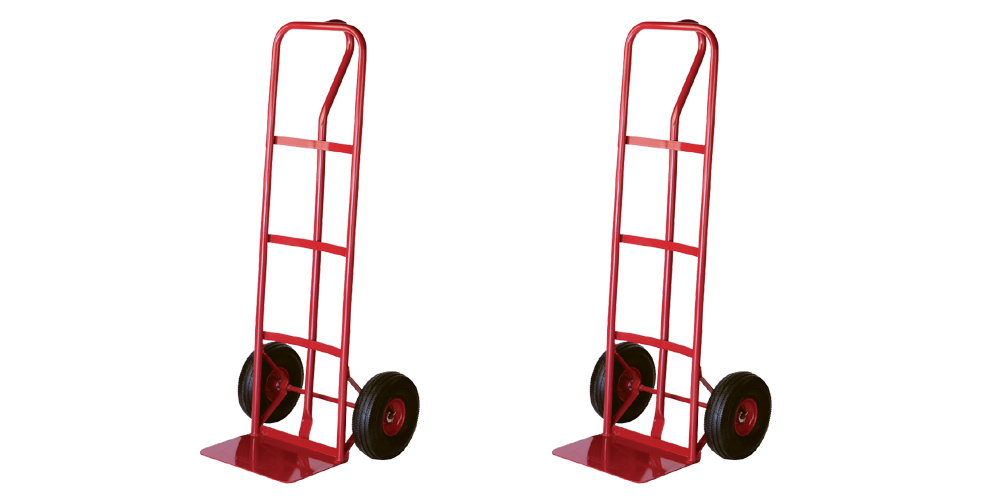

HT 2012
Heavy Duty / P-Handle

Capacity270Kg
Overall Size1300mm x 545mm x 485mm
(L x W1 x H)
Main FrameSteel Tube Ø 1.0" x 1.5mm
Vertical Brace
(P-Handle)
Steel Tube Ø 1.0" x 1.5mm
Cross Brace3-Curve Steel Strips
Thickness 3.0mm Width 27mm
Toe PlateSteel Plate Thickness 3.0mm
Height 255mm (W2) Width 360mm
WheelPneumatic Rubber Wheel 10" x 3.5"
(3.5-4) 2-PR with Ball Bearing
Welded Axle SupportSteel Plate thickness 3.0mm
Steel Tube Ø 21.4mm x 2.7mm Welding System
Welded AxleØ 16mm x 490mm
FinishingPowder Coating System
Weight11.5 Kg

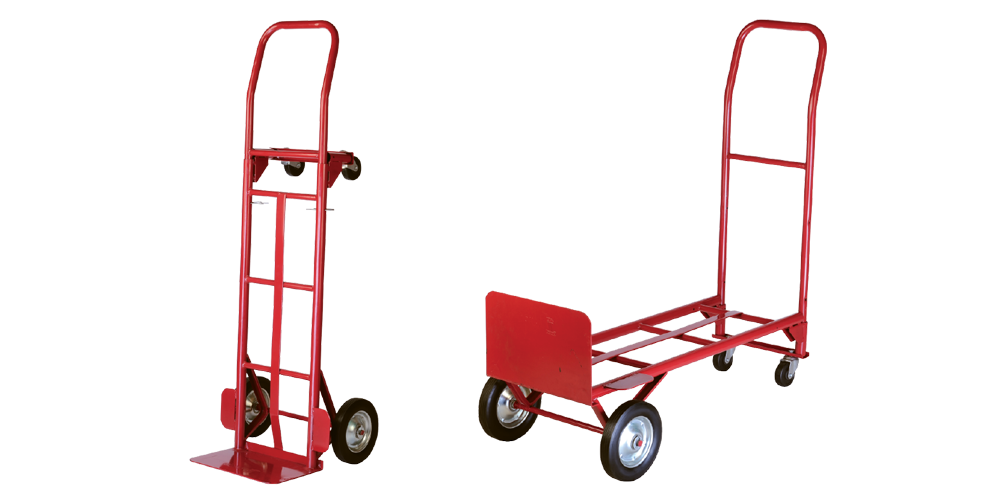

HT 2032
Heavy Duty / Two Position

Capacity180Kg
Overall Size1320mm x 446mm x 428mm
(L x W1 x H)/Horizontal
1035mm x 446mm x 953mm
(L1 x Wi x LH)/Vertical
Main FrameSteel Tube Ø 31.8mm x 1.7mm (Thickness)
Flow Back HandleSteel Tube Ø 1.0" x 1.5mm (Thickness)
Main Frame Cross BarSteel Tube Ø 19.1mm x 1.2mm (Thickness)
Vertical Brace
Steel Strip
Thickness 3mm Width 35mm
Toe PlateSteel Plate Thickness 3.0mm
Height 255mm (W2) Width 360mm
WheelSolid Rubber Wheel 8" x 1.75" with Ball Bearing
Swivel Caster Wheel 3"
Wheel BracketU Steel Plate Thickness 2.0mm Welding System
Welded AxleØ 16mm x 465mm
FinishingPowder Coating System
Weight14.5 Kg

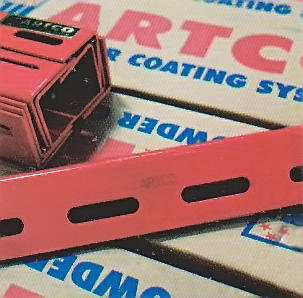

SUPER SLOT ANGLE
SL-40
  • 40mm x 40mm
  • Thickness 2mm
  • Length: 3m
  • Packing 10pcs/box
  • Outdoor Quality
  • Finished with powder coating system

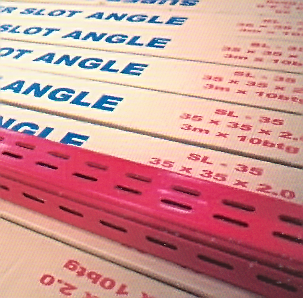

SL-35
  • 35mm x 35mm
  • Thickness 2mm
  • Length: 3m
  • Packing 10pcs/box
  • Outdoor Quality
  • Finished with powder coating system
